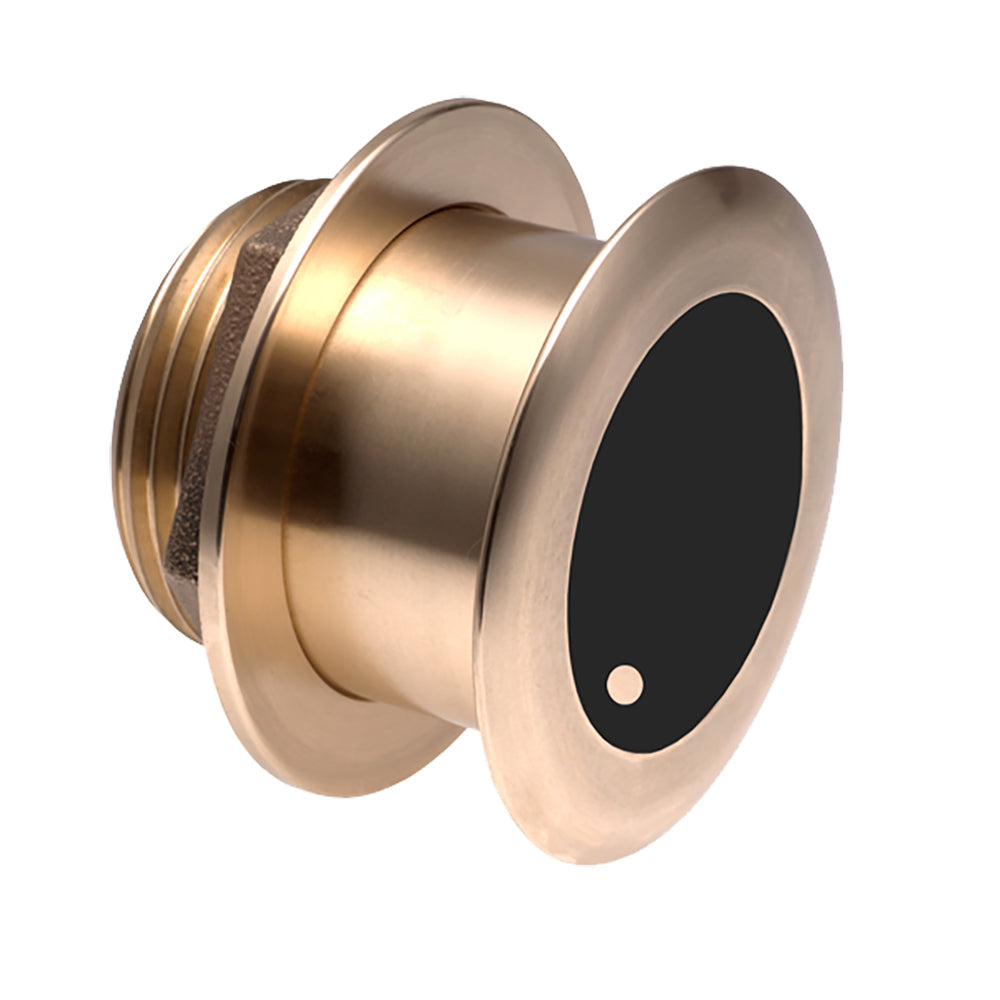

Airmar B175L 20° CHIRP Bronze Thru-Hull 1kW - Needs Mix & Match Cable

No reviews yet Write a Review
$2,593.89
SKU:
B175C-20-L-MM
Condition:
New
5 customers are viewing this product

Airmar B175L 20° CHIRP Bronze Thru-Hull 1kW - Needs Mix & Match Cable

$2,593.89

Airmar B175L 20° CHIRP Bronze Thru-Hull 1kW - Needs Mix & Match Cable Product Description

1 kW

Airmar's low-profile, Chirp-ready, transducers are the perfect addition to smaller boats such as center consoles. The B175L transmits across low-frequencies from 40 to 60 kHz, delivering excellent coverage and tracking. This transducer has up to 20 kHz of total bandwidth in just one installation for tremendous deep-water performance.

Tilted Element transducers have the ceramic element fixed at a 20°, 12°, or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

The B175L is available in three Tilted Element models:

  • Fixed 20° tilted version for 16 to 24° hull deadrise angles
  • Fixed 12° tilted version for 8 to 15° hull deadrise angles
  • Fixed 0° tilted version for 0 to 7° hull deadrise angles


B175L 20° CHIRP Bronze Thru-Hull 1kW - Needs Mix & Match Cable

Features:

  • Category: Chirp
  • Power: 1kW
  • Function: Depth,Temperature
  • Frequency: 40-60 kHz
  • Mount Style: Thru-Hull,Flush,Tilted
  • Housing Material: Bronze


Whether you are a commercial fisherman, a charter captain or a championship angler, there will be a new competition in the town. The chirp sensor can detect the bottom as low as 3,000M (10,000') through...





Frequently Asked Questions (FAQ) About Airmar B175L 20° CHIRP Bronze Thru-Hull 1kW - Needs Mix & Match Cable






























Who is the Airmar?

The right transducer enhances the performance of any echosounder, no matter what the power level or price. From small jet-ski sensors to large steel-tank transducers, Airmar's depth, speed, and temperature sensors are the most responsive in the market. Airmar prides themself on the little extras that are added to products that make a big difference in performance and customer satisfaction.

How to describe Airmar B175L 20° CHIRP Bronze Thru-Hull 1kW - Needs Mix & Match Cable?

1 kW

Airmar's low-profile, Chirp-ready, transducers are the perfect addition to smaller boats such as center consoles. The B175L transmits across low-frequencies from 40 to 60 kHz, delivering excellent coverage and tracking. This transducer has up to 20 kHz of total bandwidth in just one installation for tremendous deep-water performance.

Tilted Element transducers have the ceramic element fixed at a 20°, 12°, or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

The B175L is available in three Tilted Element models:

  • Fixed 20° tilted version for 16 to 24° hull deadrise angles
  • Fixed 12° tilted version for 8 to 15° hull deadrise angles
  • Fixed 0° tilted version for 0 to 7° hull deadrise angles
  • The B175L is a 1 kW through-hull transducer, with a frequency of 40-60 kHz and is designed for use in shallow water.
  • It's a bronze thru-hull transducer with a flush, tilted or throuh hull mount.
  • The B175L is a 1kW, 20° CHIRP transducer that offers a perfect balance of performance and price.
  • It's small enough to fit in the tightest spaces, and can be mounted on any hull type with any cable style.
  • It features a long range of 40-60kHz to cover all depths and water temperatures, while still being affordable.
  • Chirp power for accurate readings
  • Thru-hull, flush, and tilted mount options
  • Bronze housing for durability

Which mix and match cable useful for this product?

12-Pin Chirp
  • The B175L is a 1 kW through-hull transducer, with a frequency of 40-60 kHz and is designed for use in shallow water.
  • It's a bronze thru-hull transducer with a flush, tilted or throuh hull mount.
  • The B175L is a 1kW, 20° CHIRP transducer that offers a perfect balance of performance and price.
  • It's small enough to fit in the tightest spaces, and can be mounted on any hull type with any cable style.
  • It features a long range of 40-60kHz to cover all depths and water temperatures, while still being affordable.
  • Chirp power for accurate readings
  • Thru-hull, flush, and tilted mount options
  • Bronze housing for durability

What is the power rating of the product?

1 kW

What is the transducer functions of the product?

Depth, Temperature

In which country this product made in?

USA

What is the frequency band of the product?

Low

What's the Airmar B175L 20° CHIRP Bronze Thru-Hull 1kW - Needs Mix & Match Cable package dimensions and weight?

8 (w) X 10 (h) X 12 (l) inches and the weight is: 11.36 lb.

What is the sensor connector of the product?

MMC

How to mount or what is the mounting style of Airmar B175L 20° CHIRP Bronze Thru-Hull 1kW - Needs Mix & Match Cable?

Tilted Element Thru-Hull

Is this product single or dual frequency?

CHIRP-Ready Single-Band

What is the tilt angle of the product?

20°

What is the connector type of the product?

Airmar 12-Pin (MMC)

What is the length of cable?

9 m (30')

What is the display connector of the product?

Cable Required

What is the common use place of the product?

Fishing

What is the housing material of the product?

Bronze

Is this product supporting CHIRP and what's the type?

Low

What is the max depth of the product?

762 m (2500')

What is the deadrise range of product?

16° to 24°

What is the hole size of the product?

Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8")

What is the low frequency level of the product?

40-60 kHz

What is the low frequency beamwidth of the product?

32°-21°

This product has tilted element?

Yes

Which hull material is proper for this product?

Fiberglass or wood

What is the usable shaft length of the product?

71 mm (2.80")

What is the max deadrise of the product?

Up to 24°

What is the max deadrise angle of the product?

24°

What is the manufacturer notes about Airmar B175L 20° CHIRP Bronze Thru-Hull 1kW - Needs Mix & Match Cable?

1 kW

Airmar's low-profile, Chirp-ready, transducers are the perfect addition to smaller boats such as center consoles. The B175L transmits across low-frequencies from 40 to 60 kHz, delivering excellent coverage and tracking. This transducer has up to 20 kHz of total bandwidth in just one installation for tremendous deep-water performance.

Tilted Element transducers have the ceramic element fixed at a 20°, 12°, or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

The B175L is available in three Tilted Element models:

  • Fixed 20° tilted version for 16 to 24° hull deadrise angles
  • Fixed 12° tilted version for 8 to 15° hull deadrise angles
  • Fixed 0° tilted version for 0 to 7° hull deadrise angles


Buy with the best price Airmar B175L 20° CHIRP Bronze Thru-Hull 1kW - Needs Mix & Match Cable for only $1564 from NVN Marine! Same day free shipping before 3pm.

Airmar B175L 20° CHIRP Bronze Thru-Hull 1kW - Needs Mix & Match Cable Technical Specifications

Type:

Vendor:

Airmar

Weight:

11.4 lb

Chirp:

Low

Mounting Style:

Thru-Hull

User Guide:

Product Manual:

Product Brochure:

Product Installation:
