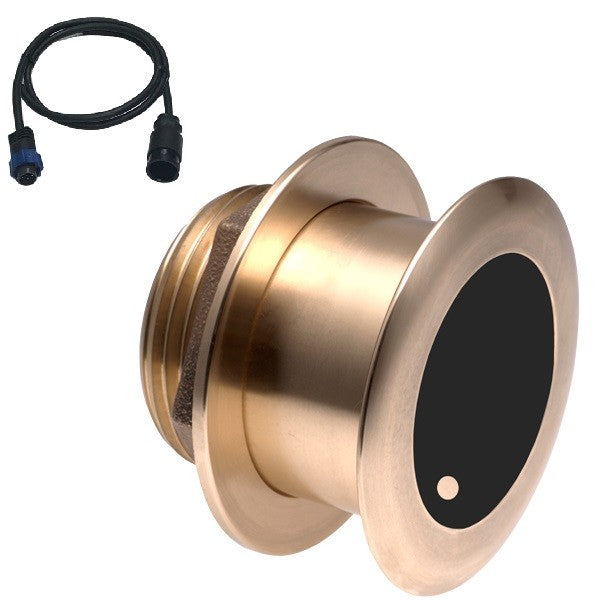

Airmar B175C-20-M 20d Tilt With Navico 7-Pin MM Cable
click to zoom in

have questions?

1.587.566.0049 Ask an Experts

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Fast & Reliable

  • US & Canada Delivery

Airmar B175C-20-M 20d Tilt With Navico 7-Pin MM Cable

No reviews yet Write a Review
$1,585.85
17 sold in last 6 hour
SKU:
B175C-20-M-BL
Condition:
New

Request For Quote
5 customers are viewing this product

Airmar B175C-20-M 20d Tilt With Navico 7-Pin MM Cable

$1,585.85

Airmar B175C-20-M 20d Tilt With Navico 7-Pin MM Cable

Description

Airmar B175C-20-M 20d Tilt With Navico 7-Pin MM Cable Product Description

1 kW

The B175M’s medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Medium frequency also provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths of up to 457 m (1500') and gives ultra-clear target resolution.

Airmar’s Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.

The B175M is available in three Tilted Element models:

  • Fixed 20° tilted version for 16 to 24° hull deadrise angles
  • Fixed 12° tilted version for 8 to 15° hull deadrise angles
  • Fixed 0° tilted version for 0 to 7° hull deadrise angles


Airmar B175 Chirp Medium Frequency 20d Tilted Element with Navico 7-Pin Mix-N-Match Cable

Model: B175C-20-M-BL
  • Depth & fast-response water-temperature sensor
  • Medium—CHIRPS from 85 kHz to 135 kHz
  • 24° to 16° beamwidth
  • 50 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
  • Hull Type: Fiberglass or wood
  • Boat Size: 8 m (25’) and above

Rely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.

Specifications
Deadrise 16° to 24°
Acoustic Window Urethane
Power rating 1 kW @ 1% duty cycle
Frequency 85-135 kHz

What's in the Box:
  • B175C-20-M-MM
  • MMC-BL


Airmar B175 chirp IF 20d tilt element with Navico 7-pin hybrid N-type matching cable Model: B175C-20-M-BLD depth and fast response water temperature sensor Medium-CHIRPS from 85 kHz to 135 kHz to 24° to 16° beam width 50 kHz all...

Frequently Asked Questions (FAQ) About Airmar B175C-20-M 20d Tilt With Navico 7-Pin MM Cable





























Who is the Airmar?

The right transducer enhances the performance of any echosounder, no matter what the power level or price. From small jet-ski sensors to large steel-tank transducers, Airmar's depth, speed, and temperature sensors are the most responsive in the market. Airmar prides themself on the little extras that are added to products that make a big difference in performance and customer satisfaction.

How to describe Airmar B175C-20-M 20d Tilt With Navico 7-Pin MM Cable?

1 kW

The B175M’s medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Medium frequency also provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths of up to 457 m (1500') and gives ultra-clear target resolution.

Airmar’s Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.

The B175M is available in three Tilted Element models:

  • Fixed 20° tilted version for 16 to 24° hull deadrise angles
  • Fixed 12° tilted version for 8 to 15° hull deadrise angles
  • Fixed 0° tilted version for 0 to 7° hull deadrise angles
  • The latest in advanced sonar technology with a wide range of frequencies and beamwidth.
  • With a depth and fast-response water-temperature sensor, this product is perfect for any type of fishing.
  • Comes with a Navico 7-Pin Mix-N-Match Cable, so you can customize your cable to fit your needs.
  • The Airmar B175 Chirp Medium Frequency 20d Tilted Element with Navico 7-Pin Mix-N-Match Cable Model: B175C-20-M-BL is a depth and fast response water temperature sensor that operates at 85 kHz to 135 kHz.
  • The 24 to 16 degree beamwidth of the sensor provides a 50 kHz total bandwidth.

The Airmar B175C-20-M 20d is a medium frequency, chirp depth & fast-response water-temperature sensor with a beamwidth of 24 to 16 degrees. It operates from 85 kHz to 135 kHz and has 50 kHz of total bandwidth.

Which mix and match cable useful for this product?

12-Pin Chirp
  • The latest in advanced sonar technology with a wide range of frequencies and beamwidth.
  • With a depth and fast-response water-temperature sensor, this product is perfect for any type of fishing.
  • Comes with a Navico 7-Pin Mix-N-Match Cable, so you can customize your cable to fit your needs.
  • The Airmar B175 Chirp Medium Frequency 20d Tilted Element with Navico 7-Pin Mix-N-Match Cable Model: B175C-20-M-BL is a depth and fast response water temperature sensor that operates at 85 kHz to 135 kHz.
  • The 24 to 16 degree beamwidth of the sensor provides a 50 kHz total bandwidth.
  • The Airmar B175 Chirp Medium Frequency 20d Tilted Element with Navico 7-Pin Mix-N-Match Cable Model: B175C-20-M-BLDepth & fast-response water-temperature sensor Medium& 8212;CHIRPS from 85 kHz to 135 kHz 24& 176; to 16& 176; beamwidth 50 kHz of total is a state of the art fishfinder.
  • Compact and lightweight, it offers a high performance and reliability.
  • Airmar B175 Chirp Medium Frequency 20d Tilted Element with Navico 7-Pin Mix-N-Match Cable Model: B175C-20-M-BLDepth & fast-response water temperature sensor Medium& 8212;CHIRPS from 85 kHz to 135 kHz 24& 176; to 16& 176; beamwidth 50 kHz of total
  • The Airmar B175 Chirp features a depth and fast response water temperature sensor, medium CHIRPS from 85 kHz to 135 kHz, 24& 176; to

What is the power rating of the product?

1 kW

What is the transducer functions of the product?

Depth, Temperature

In which country this product made in?

USA

What is the frequency band of the product?

Medium

What's the Airmar B175C-20-M 20d Tilt With Navico 7-Pin MM Cable package dimensions and weight?

8 (w) X 10 (h) X 11 (l) inches and the weight is: 11.03 lb.

What is the sensor connector of the product?

MMC

How to mount or what is the mounting style of Airmar B175C-20-M 20d Tilt With Navico 7-Pin MM Cable?

Tilted Element Thru-Hull

Is this product single or dual frequency?

CHIRP-Ready Single-Band

What is the tilt angle of the product?

20°

What is the display connector of the product?

BL

What is the common use place of the product?

Fishing

What is the connector type of the product?

Lowrance 7-Pin

What is the length of cable?

10 m (33')

What is the housing material of the product?

Bronze

What is the max depth of the product?

1457 m (1500')

What is the deadrise range of product?

16° to 24°

What is the hole size of the product?

Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8")

This product has tilted element?

Yes

Which hull material is proper for this product?

Fiberglass or wood

What is the medium frequency level of the product?

85-135 kHz

What is the medium frequency beamwidth of the product?

16°-11°

What is the usable shaft length of the product?

55 mm (2.18")

What is the max deadrise of the product?

Up to 24°

What is the max deadrise angle of the product?

24°

What is the manufacturer notes about Airmar B175C-20-M 20d Tilt With Navico 7-Pin MM Cable?

1 kW

The B175M’s medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Medium frequency also provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths of up to 457 m (1500') and gives ultra-clear target resolution.

Airmar’s Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.

The B175M is available in three Tilted Element models:

  • Fixed 20° tilted version for 16 to 24° hull deadrise angles
  • Fixed 12° tilted version for 8 to 15° hull deadrise angles
  • Fixed 0° tilted version for 0 to 7° hull deadrise angles


Buy with the best price Airmar B175C-20-M 20d Tilt With Navico 7-Pin MM Cable for only $1379 from NVN Marine! Same day shipping before 3pm.

Airmar B175C-20-M 20d Tilt With Navico 7-Pin MM Cable Technical Specifications

Type:

Vendor:

Airmar

Weight:

15.0 lb
User Guide:

Product Manual:

Product Brochure:

Product Installation:
