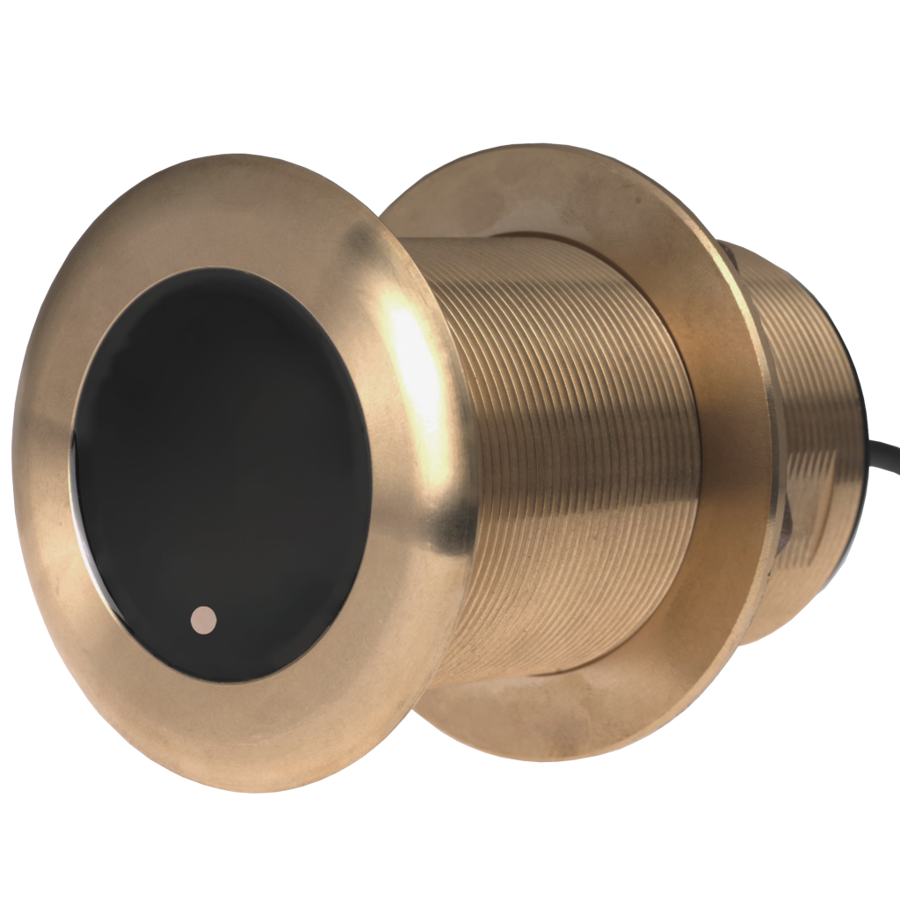

Airmar B175C-0-L-HB - B175 Low Chirp, 1kW, 0° Tilt, Humminbird #9, DT

No reviews yet Write a Review
$1,953.85
SKU:
B175C-0-L-HB
Condition:
New
5 customers are viewing this product

Airmar B175C-0-L-HB - B175 Low Chirp, 1kW, 0° Tilt, Humminbird #9, DT

$1,953.85

Airmar B175C-0-L-HB - B175 Low Chirp, 1kW, 0° Tilt, Humminbird #9, DT Product Description

1 kW

Airmar’s low-profile, Chirp-ready, transducers are the perfect addition to smaller boats such as center consoles. The B175L transmits across low-frequencies from 40 to 60 kHz, delivering excellent coverage and tracking. This transducer has up to 20 kHz of total bandwidth in just one installation for tremendous deep-water performance.

Tilted Element™ transducers have the ceramic element fixed at a 20°, 12°, or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

The B175L is available in three Tilted Element models:

  • Fixed 20° tilted version for 16 to 24° hull deadrise angles
  • Fixed 12° tilted version for 8 to 15° hull deadrise angles
  • Fixed 0° tilted version for 0 to 7° hull deadrise angles


1 kW

Airmar’s low-profile, Chirp-ready, transducers are the perfect addition to smaller boats such as center consoles. The B175L transmits across low-frequencies from 40 to 60 kHz, delivering excellent coverage and tracking. This transducer has up to 20 kHz of total bandwidth in just one installation for tremendous deep-water performance.

Tilted Element™ transducers have the ceramic element fixed at a 20°, 12°, or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

The B175L is available in three Tilted Element models:

  • Fixed 20° tilted version for 16 to 24° hull deadrise angles
  • Fixed 12° tilted version for 8 to 15° hull deadrise angles
  • Fixed 0° tilted version for 0 to 7° hull deadrise angles




  • Depth and fast-response water-temperature sensing
  • 1 kW of power for great deep-water performance
  • Low frequency: 40 to 60 kHz
    • 32° to 21° beamwidth
    • Maximum depth of 762 m (2500')
  • Low-profile, thru-hull housing provides good display resolution at speed when installed properly
  • Recommended for stepped, planing, or displacement hull
  • Bronze housing for use in a fiberglass or wood hull
  • Also available in a stainless steel housing (SS175L) for use with all hull materials
  • Patented Xducer ID® technology


Frequently Asked Questions (FAQ) About Airmar B175C-0-L-HB - B175 Low Chirp, 1kW, 0° Tilt, Humminbird #9, DT





























Who is the Airmar?

The right transducer enhances the performance of any echosounder, no matter what the power level or price. From small jet-ski sensors to large steel-tank transducers, Airmar's depth, speed, and temperature sensors are the most responsive in the market. Airmar prides themself on the little extras that are added to products that make a big difference in performance and customer satisfaction.

How to describe Airmar B175C-0-L-HB - B175 Low Chirp, 1kW, 0° Tilt, Humminbird #9, DT?

1 kW

Airmar’s low-profile, Chirp-ready, transducers are the perfect addition to smaller boats such as center consoles. The B175L transmits across low-frequencies from 40 to 60 kHz, delivering excellent coverage and tracking. This transducer has up to 20 kHz of total bandwidth in just one installation for tremendous deep-water performance.

Tilted Element™ transducers have the ceramic element fixed at a 20°, 12°, or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

The B175L is available in three Tilted Element models:

  • Fixed 20° tilted version for 16 to 24° hull deadrise angles
  • Fixed 12° tilted version for 8 to 15° hull deadrise angles
  • Fixed 0° tilted version for 0 to 7° hull deadrise angles

Which mix and match cable useful for this product?

12-Pin Chirp

What is the power rating of the product?

1 kW

What is the transducer functions of the product?

Depth, Temperature

In which country this product made in?

USA

What is the frequency band of the product?

Low

What's the Airmar B175C-0-L-HB - B175 Low Chirp, 1kW, 0° Tilt, Humminbird #9, DT package dimensions and weight?

8 (w) X 10 (h) X 11 (l) inches and the weight is: 11.61 lb.

What is the sensor connector of the product?

MMC

How to mount or what is the mounting style of Airmar B175C-0-L-HB - B175 Low Chirp, 1kW, 0° Tilt, Humminbird #9, DT?

Tilted Element Thru-Hull

Is this product single or dual frequency?

CHIRP-Ready Single-Band

What is the tilt angle of the product?

What is the display connector of the product?

HB

What is the common use place of the product?

Fishing

What is the connector type of the product?

HumminBird #9

What is the length of cable?

10 m (33')

What is the housing material of the product?

Bronze

What is the max depth of the product?

762 m (2500')

What is the deadrise range of product?

0° to 7°

What is the hole size of the product?

Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8")

What is the low frequency beamwidth of the product?

32°-21°

What is the low frequency level of the product?

40-60 kHz

This product has tilted element?

Yes

Which hull material is proper for this product?

Fiberglass or wood

What is the usable shaft length of the product?

71 mm (2.80")

What is the max deadrise angle of the product?

24°

What is the max deadrise of the product?

Up to 24°

What is the manufacturer notes about Airmar B175C-0-L-HB - B175 Low Chirp, 1kW, 0° Tilt, Humminbird #9, DT?

1 kW

Airmar’s low-profile, Chirp-ready, transducers are the perfect addition to smaller boats such as center consoles. The B175L transmits across low-frequencies from 40 to 60 kHz, delivering excellent coverage and tracking. This transducer has up to 20 kHz of total bandwidth in just one installation for tremendous deep-water performance.

Tilted Element™ transducers have the ceramic element fixed at a 20°, 12°, or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

The B175L is available in three Tilted Element models:

  • Fixed 20° tilted version for 16 to 24° hull deadrise angles
  • Fixed 12° tilted version for 8 to 15° hull deadrise angles
  • Fixed 0° tilted version for 0 to 7° hull deadrise angles


Buy with the best price Airmar B175C-0-L-HB - B175 Low Chirp, 1kW, 0° Tilt, Humminbird #9, DT for only $1699 from NVN Marine! Same day free shipping before 3pm.

Airmar B175C-0-L-HB - B175 Low Chirp, 1kW, 0° Tilt, Humminbird #9, DT Technical Specifications
