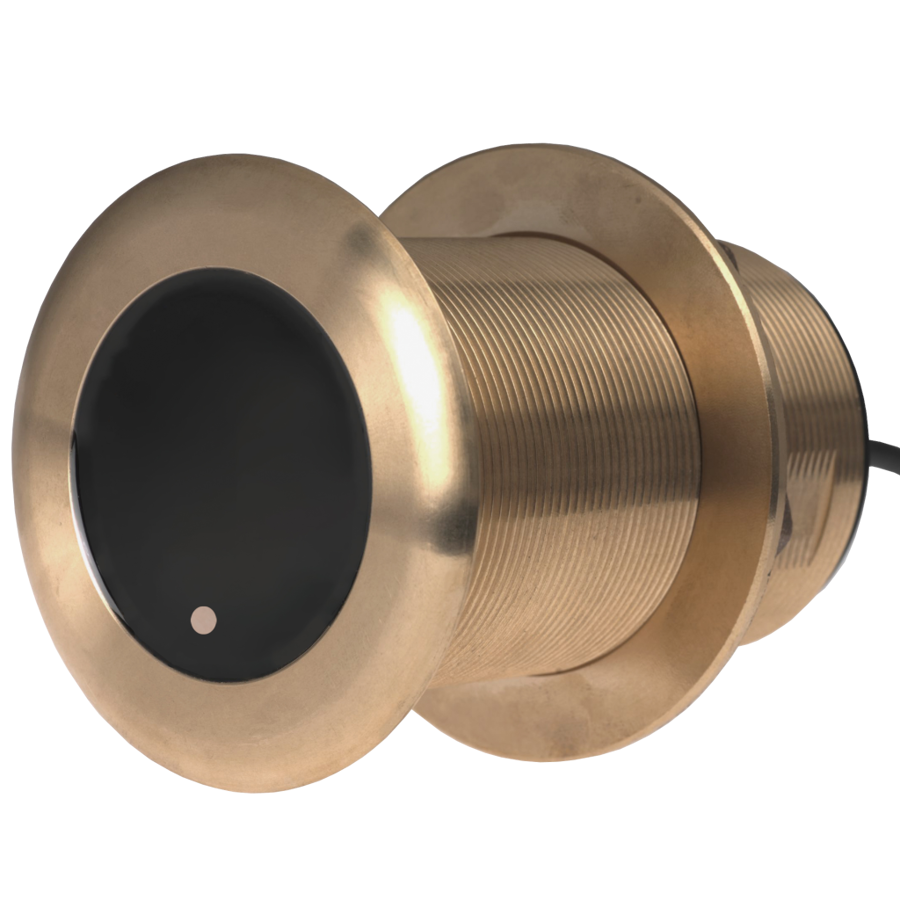

Airmar B175C-0-HW-21HB - B175 High Wide Chirp, 1kW, 0° Tilt, Humminbird 21, DT

No reviews yet Write a Review
$2,618.76
SKU:
B175C-0-HW-21HB
Condition:
New
5 customers are viewing this product

Airmar B175C-0-HW-21HB - B175 High Wide Chirp, 1kW, 0° Tilt, Humminbird 21, DT

$2,618.76

Airmar B175C-0-HW-21HB - B175 High Wide Chirp, 1kW, 0° Tilt, Humminbird 21, DT Product Description

Get more coverage under your boat with Airmar’s unique wide beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500').

Tilted Element™ transducers have the element fixed at either a 20°, 12° or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise and orients the ceramic element horizontally to ensure maximum echo returns to the transducer.

The B175HW is available in three Tilted Element models:

  • Fixed 20° tilted version for 16° to 24° hull deadrise
  • Fixed 12° tilted version for 8° to 15° hull deadrise
  • Fixed 0° tilted version for 0° to 7° hull deadrise


Get more coverage under your boat with Airmar’s unique wide beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500').

Tilted Element™ transducers have the element fixed at either a 20°, 12° or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise and orients the ceramic element horizontally to ensure maximum echo returns to the transducer.

The B175HW is available in three Tilted Element models:

  • Fixed 20° tilted version for 16° to 24° hull deadrise
  • Fixed 12° tilted version for 8° to 15° hull deadrise
  • Fixed 0° tilted version for 0° to 7° hull deadrise




  • Depth and fast-response water-temperature sensor
  • 1 kW with a maximum depth of 152 m (500')
  • High frequency: 150 to 250 kHz
    • Constant 25° beam
  • 100 kHz of total bandwidth from one transducer
  • Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
  • High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
  • High wide beamwidth yields more coverage for detecting fish in the upper-water column
  • Low-profile, thru-hull housing provides good resolution at speed when installed properly
  • Bronze housing for use on stepped, planing or displacement hull
  • Also available in a stainless steel housing (SS175HW) and as a transom (TM185HW), or in-hull (M285HW) mount
  • Exclusive Xducer ID™ technology


Frequently Asked Questions (FAQ) About Airmar B175C-0-HW-21HB - B175 High Wide Chirp, 1kW, 0° Tilt, Humminbird 21, DT





























Who is the Airmar?

The right transducer enhances the performance of any echosounder, no matter what the power level or price. From small jet-ski sensors to large steel-tank transducers, Airmar's depth, speed, and temperature sensors are the most responsive in the market. Airmar prides themself on the little extras that are added to products that make a big difference in performance and customer satisfaction.

How to describe Airmar B175C-0-HW-21HB - B175 High Wide Chirp, 1kW, 0° Tilt, Humminbird 21, DT?

Get more coverage under your boat with Airmar’s unique wide beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500').

Tilted Element™ transducers have the element fixed at either a 20°, 12° or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise and orients the ceramic element horizontally to ensure maximum echo returns to the transducer.

The B175HW is available in three Tilted Element models:

  • Fixed 20° tilted version for 16° to 24° hull deadrise
  • Fixed 12° tilted version for 8° to 15° hull deadrise
  • Fixed 0° tilted version for 0° to 7° hull deadrise

Which mix and match cable useful for this product?

12-Pin Chirp

What is the power rating of the product?

1 kW

What is the transducer functions of the product?

Depth, Temperature

In which country this product made in?

USA

What is the frequency band of the product?

High Wide

What's the Airmar B175C-0-HW-21HB - B175 High Wide Chirp, 1kW, 0° Tilt, Humminbird 21, DT package dimensions and weight?

8 (w) X 10 (h) X 11 (l) inches and the weight is: 11.12 lb.

What is the sensor connector of the product?

MMC

How to mount or what is the mounting style of Airmar B175C-0-HW-21HB - B175 High Wide Chirp, 1kW, 0° Tilt, Humminbird 21, DT?

Tilted Element Thru-Hull

Is this product single or dual frequency?

CHIRP-Ready Single-Band

What is the tilt angle of the product?

What is the display connector of the product?

21HB

What is the common use place of the product?

Fishing

What is the connector type of the product?

Humminbird 21-Pin

What is the length of cable?

10 m (33')

What is the housing material of the product?

Bronze

What is the max depth of the product?

150 m (500')

What is the deadrise range of product?

0° to 7°

What is the hole size of the product?

95 mm (3-3/4")

What is the high-wide beamwidth of the product?

25°

What is the high frequency level of the product?

150-250 kHz

This product has tilted element?

Yes

Which hull material is proper for this product?

Fiberglass or wood

What is the usable shaft length of the product?

71 mm (2.80")

What is the max deadrise angle of the product?

24°

What is the max deadrise of the product?

Up to 24°

What is the manufacturer notes about Airmar B175C-0-HW-21HB - B175 High Wide Chirp, 1kW, 0° Tilt, Humminbird 21, DT?

Get more coverage under your boat with Airmar’s unique wide beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500').

Tilted Element™ transducers have the element fixed at either a 20°, 12° or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise and orients the ceramic element horizontally to ensure maximum echo returns to the transducer.

The B175HW is available in three Tilted Element models:

  • Fixed 20° tilted version for 16° to 24° hull deadrise
  • Fixed 12° tilted version for 8° to 15° hull deadrise
  • Fixed 0° tilted version for 0° to 7° hull deadrise


Buy with the best price Airmar B175C-0-HW-21HB - B175 High Wide Chirp, 1kW, 0° Tilt, Humminbird 21, DT for only $1579 from NVN Marine! Same day free shipping before 3pm.

Airmar B175C-0-HW-21HB - B175 High Wide Chirp, 1kW, 0° Tilt, Humminbird 21, DT Technical Specifications

Type:

Vendor:

Airmar

Weight:

11.12 lb
