ACR OLAS Exposure Series Core Product Description

OLAS Exposure Series Core

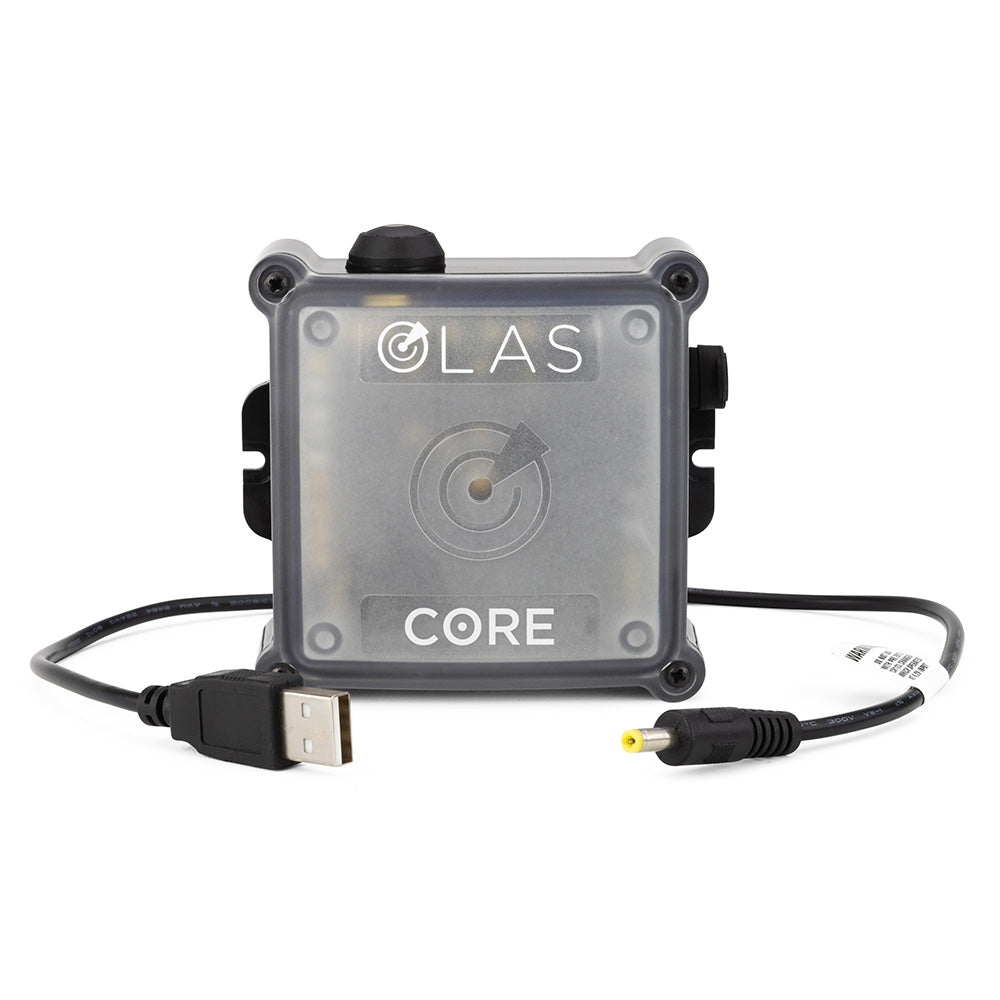

The Core is a compact, portable overboard alarm and emergency light system. It reacts within 2 seconds of a person falling overboard and can easily be switched between vessels without the time and cost of wired installation. The Core can connect with up to 25 OLAS transmitters and cover a vessel up to 50ft.

What it does

The Core wirelessly tracks OLAS transmitters around the vessel. When a person wearing a transmitter falls overboard, the in-built alarm is triggered, and a high-power emergency red light gives a visual indication and illuminates the surrounding area, all within 4 seconds.

As well as triggering the alarm, the Core connects with the free OLAS mobile application, providing an easy-to-read arrow back to the alert position plus essential MOB last known position information and auto-populated VHF prompt screens to support the crew during the stress of a recovery operation.

Why use the OLAS CORE

The Core gives skippers complete confidence that in the event of a MOB incident, the entire crew is alerted instantly and can take immediate recovery actions.

Losing a crew member overboard is every sailor’s worst nightmare. The larger the boat, the more difficult it can be to know immediately that a MOB incident has occurred, especially in the dark with crew members forward of the mast.

It can happen all too easily, even in benign conditions. Wearing a physical tether, whilst advisable, is not always practical, and indeed, falling overboard on a tether has been proven to be no guarantee of survival if the boat is at full speed and the skipper is not immediately aware of the incident.

Who is it for?

The Core connects to 25 crew members via wearable OLAS tag transmitters, creating a virtual lifeline. Larger vessels can be fitted with an OLAS Extender which increases the range from 50ft to 100ft. Suitable for anyone heading out on the water looking for added security and peace of mind. The OLAS tags are compact, lightweight, and have user-replaceable batteries, suitable for adults, children, pets, or important items that may fall overboard. The T2 OLAS transmitter has a rechargeable battery.

CORE Advantages

OLAS Integration

Any OLAS transmitting devices (OLAS Tags or OLAS Float-On LED Lights) within range can be tracked by the CORE, allowing freedom for the crew to move around the deck with total confidence that an early warning system will alert them instantly of a MOB incident, so a swift recovery can be actioned.

Connects to 25 OLAS Transmitters (OLAS T2 or Tag or OLAS Float-On LED Lights)

Connecting up to 15 OLAS transmitters allows the CORE to be used onboard larger vessels. OLAS transmitters are not only relevant to tracking crew members; simply by attaching a transmitter to objects such as MOB flotation devices, the dog, or a yacht tender, users can always be aware if something has gone missing.

Portable/low power consumption – 5V USB

The OLAS CORE is a portable base station that is powered by a 5V USB power supply, enabling it to be used on different vessels without requiring hard wiring.

Audible and Visual Alarms

An 85db alarm will sound to indicate an OLAS transmitter has gone out of range, and a high-power emergency red light will illuminate, offering a clear visual indication of a MOB alert, whilst also acting as a light to illuminate the area to aid with recovery at night. The CORE can also be linked up with the OLAS app so that alarms can be placed in multiple locations on the vessel.

Integrates with the OLAS Mobile App data and monitoring

• Instantly records the GPS location of the MOB alert position, guides the user back to the location with clear directional screens, and advises on the correct mayday call procedure.
• Monitors all OLAS Transmitters that are being tracked and enables customized ID names for easy identification
• Monitors battery level of all connected OLAS Tags
• Enables users to add/remove OLAS Tags and Float-Ons from the system
• Provides the option to manually activate/deactivate the alarm system

Expand the OLAS CORE Coverage Area

An OLAS Extender can be used with the OLAS CORE to cover areas where the Transmitter signal may be blocked. This allows use on larger vessels up to 80ft and the ability to scale the system up as required.

System Feedback

The CORE indicates how many OLAS transmitters are connected during the setup process.

Transmitters can be added/removed from the system either using the mobile app or through a simple integrated switching process.

Mobile App Features

The Core is easily operated via the OLAS App, free to download from the App Store for iOS and the Google Play Store for Android. The OLAS app requires a device running a minimum of IOS11 or Android 5.1 to work. The OLAS App is a powerful tool for controlling the Core functions and for aiding in fast rescue. The app offers the following functionality:

• Monitor all OLAS transmitters that are being tracked
• Customize OLAS transmitter Names making them easy to allocate
• Check battery status for OLAS transmitters
• Add OLAS transmitters to the system
• Adjust the time before the Core reacts to an overboard transmitter between 2 seconds to 15 seconds, allowing more freedom around larger vessels
• External alarm mode activates the inbuilt switch until it is manually canceled. This allows external, high power, alarms to be connected in series
• Pause the alarm state
• Sounding the external alarm if a Tag wearer is out of range on both the Core and mobile device
• Adjust the time before the cut-off switch or alarm is triggered – offering greater freedom
• Maximum volume alarm and vibration on a mobile phone, synchronized with the Core
• Indication of which transmitter has triggered the alarm
• Record the GPS location of where the alarm was triggered
• Clear guidance back to the GPS location where the alarm was triggered
• Clear display of the time and GPS location of where the alarm was triggered and the user's current location
• VHF emergency script with automatically input GPS co-ordinates and custom vessel information Solo Mode
• Designed for users when boating on their own within 2G cellular range or offshore Wifi. Solo mode will send an automatic text message to a custom number with the user's location and time of the incident. If a self-rescue is managed an automatic text is sent canceling the alert

Setup and Mounting

• USB Connection – simply plug into any 5V USB supply and start tracking (note: not compatible with all portable power banks due to low power usage)
• Automatic power up
• No connection alert – automatic alert when no OLAS transmitters are in range, prompting setup
• Mounting holes for permanent fitting
• Tape groove for semi-permanent attachment

Features:

• OLAS Free Mobile App Integration
• Ultra-Bright Red LED Visual Alarm
• 85 db Audible Alarm
• Connect up to 15 OLAS Transmitters
• Waterproof (IP67)
• Utilizes the latest Bluetooth® 5.0 Technology
• Portable / Low Power Consumption – 5V USB
• Expand system coverage from 50 ft. to 100 ft. using the OLAS EXTENDER (x2)

Specifications:

• Size: 3.6” (H) x 3.5” (L) x 1.5” (W)
• Weight: 0.40 Ounces
• Color: Black and Clear
• Operation: Press and Hold the Button to Sync all tags
• Maximum Number of Connected OLAS transmitter: Connects up to 25 OLAS Transmitters (OLAS Tags and/or OLAS Float-On)
• Power / Current: 5V / 13-17mA
• Visual Alarm: Red LED / 55 Lumens
• Audible Alarm: 85 Decibels
• MOB System: Track up to 25 different OLAS transmitters with 1 phone/tablet.  OLAS Transmitters can be tracked by an unlimited number of phones/tablets (Bluetooth 4.1 Compatible); The ALARM sounds within 8 seconds of a Man Overboard situation.  The system records the MOB location using the user's phone/tablet's GPS and directs the boat back to the last known location for a quick and easy recovery; Compatible with the OLAS Guardian, Extender, Mobile App, Float-On, and Tag.
• Mobile App: IOS and Android (Free Download) - Connect multiple OLAS transmitters to 1 phone or tablet; Connect 1 OLAS transmitter to multiple phones/tablets; Solo Mode (Text Message Alerts to Emergency Contacts with GPS coordinates); App Navigation: SOG, COG, Bearing to Waypoint, Course to steer, and Compass (Download the OLAS App on the App store or get it on Google Play: Search ‘OLAS EXPOSURE’)
• Range: For use with vessels up to 50 feet; Extend the coverage range on larger vessels with the OLAS EXTENDER for coverage on boats up to 100 feet.
• Scalability: Upgrade a system with the OLAS Guardian (Base Station with Alarm and Engine Kill Switch) and the OLAS Extender (extends the range of a MOB system from a vessel size of 50 ft up to 100 ft).
• Buoyant: No
• Waterproof: Yes (IP67)
• Fuse: Not Applicable
• Bluetooth: 5.0
• Applications: Recreational and Commercial Boating
• Accessories (included): USB Charging Cable
• Warranty: 1 Year
• Approvals: FCC, RED, CE

ACR OLAS Exposure Series Core Technical Specifications
